1964 Porsche 356C Restoration: Part 5

This is fifth in a series of posts on the automotive restoration of this 1964 Porsche 356C.  Part One described condition of the Porsche after media blasting and the rebuild of the B-post, Part Two explains the fender reconstruction process, Part Three covered the front end reconstruction, and Part Four described the rebuild of the right-hand front fender and wheel arch.

The right-hand rear quarter is particularly weak in numerous areas, so we will section out these areas and graft in new material.  Access to welds under the new metal is a difficult area to work due to the limited space.   Fitting and manoeuvring a dolly for plannishing work is especially hard around the engine bay lip where the inner and outer panels narrow down and sandwich together.  Due to accessibility we will probably finish the upper areas around the engine bay lip with lead.

We will make future posts to demonstrate the lead work undertaken.  Meanwhile here are the photos below accompanied with short captions that explain the restoration of the right hand rear quarter.

The damaged panel before restoration

classic cars, antique cars, unique cars, automotive restoration, metal work
A close up view of the right rear quarter panel
classic cars, antique cars, unique cars, automotive restoration, metal work
Take a closer look at the evidence of decay over the years
classic cars, antique cars, unique cars, automotive restoration, metal work
Areas marked for surgery

Photos of the restoration process for this panel

classic cars, antique cars, unique cars, automotive restoration, metal work
Decayed areas cut out
classic cars, antique cars, unique cars, automotive restoration, metal work
Inner wheel arch can be seen beyond area cut out for repair. The inner wheel is very close, which makes using a dolly to aid metal finishing very difficult.
classic cars, antique cars, unique cars, automotive restoration, metal work
Repair sections tacked into place ready for TIG welding
classic cars, antique cars, unique cars, automotive restoration, metal work
Grafted sections have now been TIG weld up, and the top of the welds now have been taken down to the base.
classic cars, antique cars, unique cars, automotive restoration, metal work
Metal finishing begins. You can see the extent of the damage from the photo and the amount of metal finishing required to make this panel smooth.
classic cars, antique cars, unique cars, automotive restoration, metal work
Upper area gone through the metal finishing process
classic cars, antique cars, unique cars, automotive restoration, metal work
Areas picked up and filed
classic cars, antique cars, unique cars, automotive restoration, metal work
Hammer and dolly work continued
classic cars, antique cars, unique cars, automotive restoration, metal work
Getting closer

Photos of the completely restored panel on the Porsche

classic cars, antique cars, unique cars, automotive restoration, metal work
Metal finishing complete
classic cars, antique cars, unique cars, automotive restoration, metal work
All smoothed out and ready for next stage
classic cars, antique cars, unique cars, automotive restoration, metal work

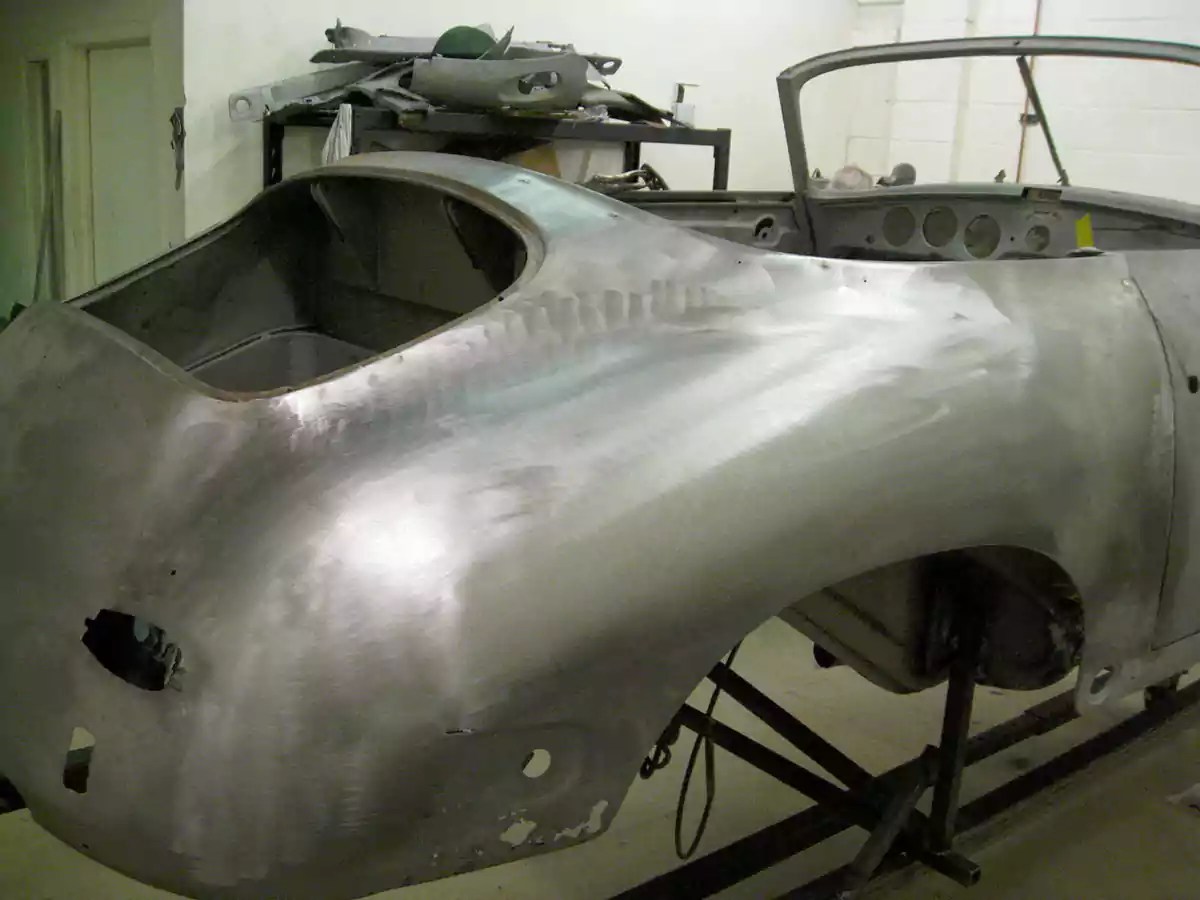

From the reverse angle.
